Automatic Double Box Positioning Machine For Phone Box, Gift Box,Case Maker
Description
The Double Visual Positioning Gluing Machine is suitable for various high-quality gift boxes that require precise gluing, such as phone boxes, cosmetic boxes, jewelry boxes, watch boxes, and wine boxes.
It can achieve high-accuracy positioning and gluing for rigid boxes, case makers, drawer boxes, irregular-shaped boxes, and more.
Product Features
1. Double feeding position and independent control by different servo motor. More stable to run different thickness paper at the same time.
2. Independent control by different servo motor for feeding, avert double sheet and incline.
3. Within 4 sets of high precision cameras and YAMAHA robot arm. Positioning accuracy of ± 0.05mm. YAMAHA robot arm are adopted to accurate position all kinds of product, such like rigid box, case maker, covering, plastic box, wooden box, irregular shaped box ,etc.
4. Able to production Rigid Box and Hard Cover(Case Maker) at the same time
5. Able to production box and case at the same time, Capacity up to35-45 PCS/Min.
6. Easy to setup enhance productivity and increase enterprise profit
7. Decreased your overlapping investment for meeting products demand, boosted machine’s service
Details:
| Separate feeding control by servo |
Four cameras |
YAMAHA Robot arm |
 |
 |
 |
|

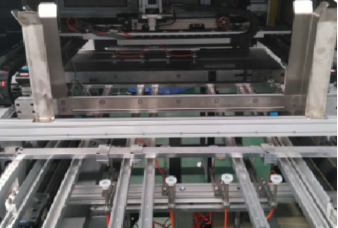

1. Feeder is controlled by servo motor. And separate servo control with different lifting function for feeding stack.
3. Independent controlled feeding table and independently controlled sheet roller. Avoid the inconsistency of the length of the paper between the two sheets.
|
1. German Balser camera with Japanese Lens in 10 million Pixel tracing system
2. Four Cameras with YAMAHA robot working XY Spool for placement.
3. Positioning accuracy reach ± 0.05mm
|
1. Multiple Robot Arm for spotting the box or covers.
2. The arm able to working with only two boxes or separate with big sheet of cover.
|
| |
|
|
 Functions for the hard cover |
 Functions for feeding double boxes |
Functions for lining |
|
1. Hardcover size able to do 1000*500mm.
2. Able to do separate board maximum 6 pcs .
3. Minimum spine is 30mm.(able to modify to 15mm.
|
1. Able to working two boxes or box and cover at same time.
2. Corner pasting able to connect online.
|
1. Hardcover size able to do 1000*500mm.
2. lining with bottom section,first suck down then push to the positioning area, avoid scratch.
|
Process flow:
For boxes:
For hard cover:
For sleeve boxes:
Machine Parameters:
| Paper size |
single sheet |
double sheet |
| W :80-800mm |
W :80-375mm |
| L :120-1000mm |
L :120-900mm |
| Paper thickness |
100-350g/m2 |
| cardboard thickness |
2＞mm |
| Finished box size |
L: 65-700mm |
L :65-350mm |
| W:65-400mm |
W :65-350mm |
| H:5-120mm |
H :5-120mm |
| Finished case size |
L:65-1000mm |
L :65-375mm |
| W:65-500mm |
W :65-375mm |
| Precision accuracy |
±0.05mm |
| Max power |
11KW |
| Min width of spine |
30mm |
| Gap of case |
1-4mm |
| Capacity of production |
25-45PCS/MIN |
30-45PCS/MIN |
| Power Supply: |
380V/50Hz |
| Machine dimension: |
L7415×W2510×H2000mm |
| Machine weight: |
2000kg |
Apply to:
Company Introduction
LiShunyuan was founded in 2001, located in Dongguan city, Guangdong Province Daojiao town Nanya Industrial zone, and has a modern standard workshops of 20000 square meters, after 20 years of development, the company in domestic has formed a complete sales network and after-sales service system, product sales network and after-sales service system, product sales throughout the whole of China, exported to Europe and the united states, Southeast Asia, South America, Middle East, Africa and so on more than 40 countries and Regions.
Workshop
Packing and Shipping
FAQ:
1.What about machine warranty?----1 year warranty including free machine parts replacement ( consumables are not included).
2.What is the production time while placing order?---- Within 7-30 workdays.
3.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case,all are confirm to export packing standard.
